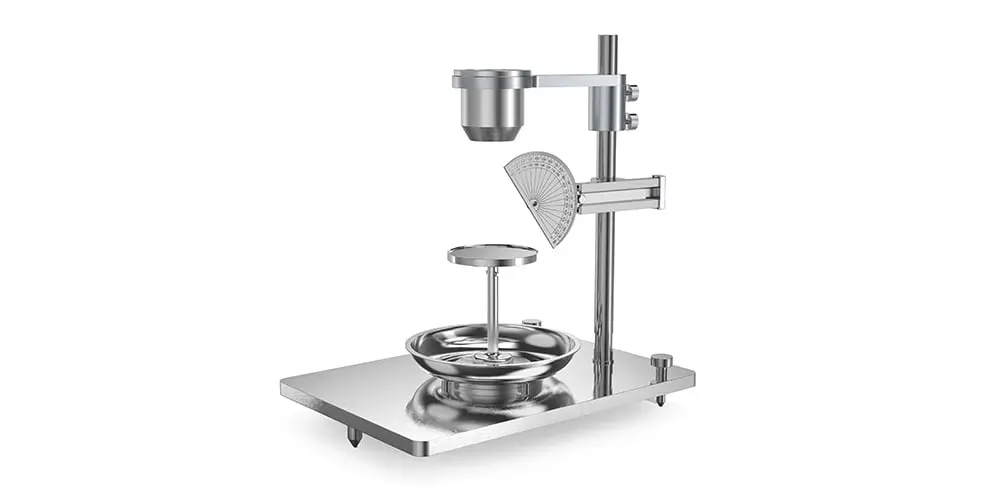

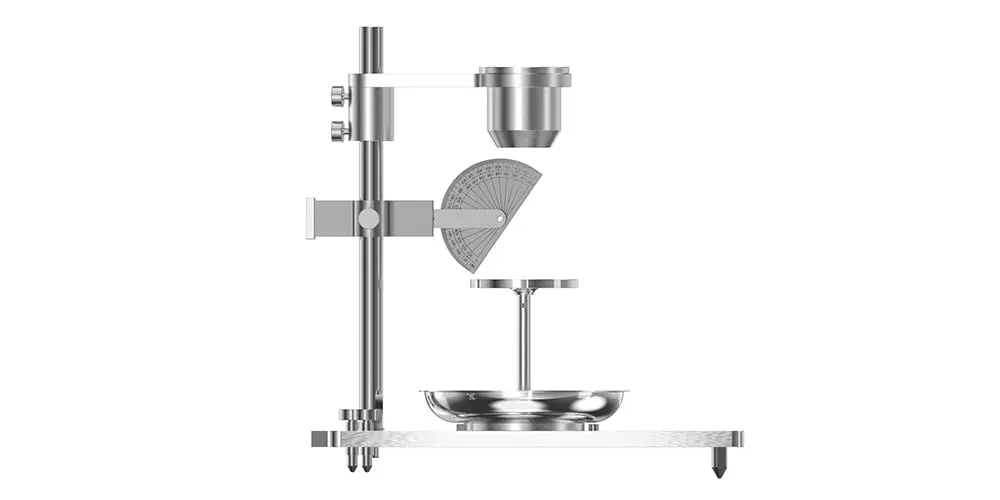

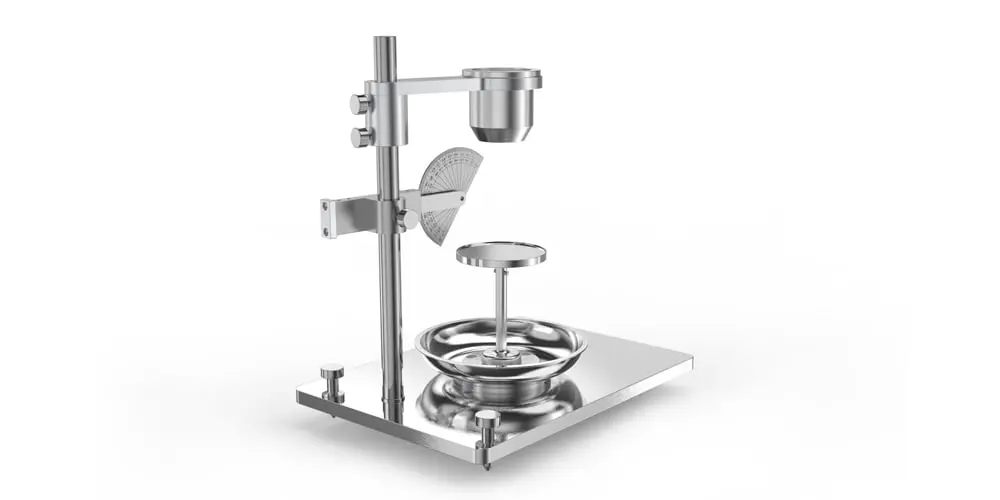

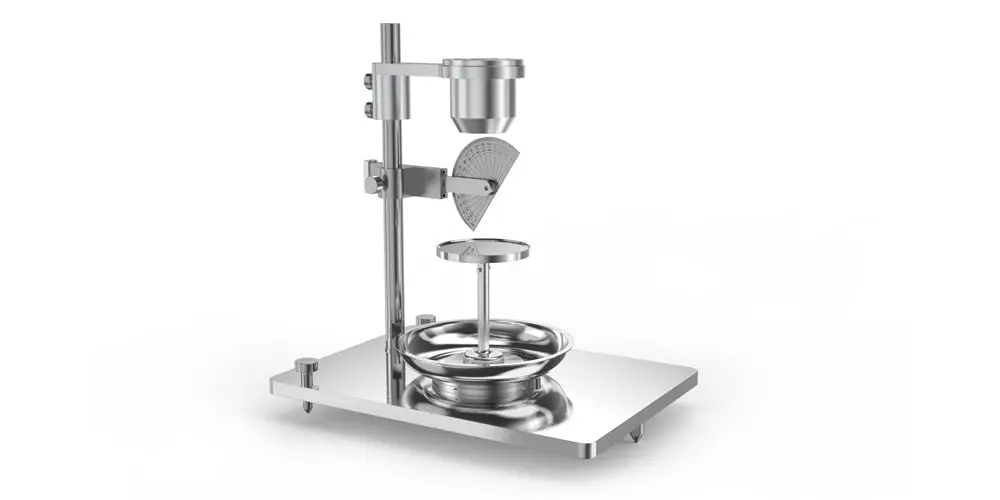

BeDensi AR은 파우더 안식각 테스트의 정밀도를 위해 세심하게 제작되었습니다. 이 측정은 특정 조건에서 파우더 콘의 경사진 면이 만들어내는 각도를 의미하며 파우더 유동성을 나타내는 중요한 지표입니다. 휴면 각도가 작을수록 유동성이 더 좋습니다. 휴면 각도를 이해하는 것은 분말 재료의 취급과 관련된 공정을 평가하고 최적화하는 데 필수적입니다.
특징 및 장점
- ● 측정: 휴식 각도
- ● USP 및 Ph.Eur. 표준 준수
개요
1. 휴식 각도
BeDensi AR은 파우더 휴면각 테스트의 정밀도를 위해 세심하게 제작되었습니다. 이 측정은 특정 조건에서 파우더 콘의 경사진 면이 만들어내는 각도를 의미하며 파우더 유동성을 나타내는 중요한 지표입니다. 휴면 각도가 작을수록 유동성이 더 좋습니다. 휴면 각도를 이해하는 것은 분말 재료의 취급과 관련된 공정을 평가하고 최적화하는 데 필수적입니다.
2. 측정 절차
- 휴식 각도
| 휴식 각도(°) | 흐름 속성 |
| ≤ 25 | 우수 |
| 25 - 30 | 양호 |
| 30 - 40 | 통과 가능 |
| ﹥ 40 | 매우 나쁨 |
휴식 각도에 따른 유동성 평가
3. 적용 예
코팅, 세라믹, 실리카, 활성탄, 분유와 같은 재료를 포함한 광범위한 산업 분야에서 분말의 유동성을 BeDensi AR로 특성화합니다.
BeDensi AR을 활용하면 다양한 샘플을 포괄적으로 평가할 수 있으며, 각 샘플은 측정된 각도에 따라 고유한 특성을 갖습니다. 이 분석은 다양한 애플리케이션에서 공정을 최적화하고 제품 품질을 향상시키는 데 유용한 도구로 사용됩니다.
| 샘플 | 휴식 각도 | 유동성 |
| 라주라이트 안료 | 21° | 우수 |
| 세라믹 파우더 | 28° | 양호 |
| SiO2 분말 | 34° | 통과 가능 |
| 활성탄 | 39° | 통과 가능 |
| 밀크 파우더 | 46° | 매우 나쁨 |
4. 산업 솔루션
세라믹 분말 유동성 최적화를 지원합니다.
3D 프린팅 산업에서 ZrO2 분말을 층별로 소결하거나 융합하여 복잡한 구조를 정밀하게 형성할 수 있습니다. 따라서 ZrO2 분말의 유동성은 바인더 제트 3D 프린팅에 적합한 재료를 합성하는 데 중요한 요소입니다.
이 응용 사례에서 ZrO2 분말의 유동성을 평가하기 위해 BeDensi AR을 사용하여 잔류 각도를 측정했습니다. 그래프의 결과는 ZrO2 가 다른 두 가지 유형의 유동제와 비교했을 때 가장 작은 휴면 각도를 나타내며 우수한 유동성을 나타냅니다. 이 결론은 3D 프린팅 시 파우더의 거동을 개선하기 위한 최적의 유동제를 선택하는 데 도움이 됩니다.
