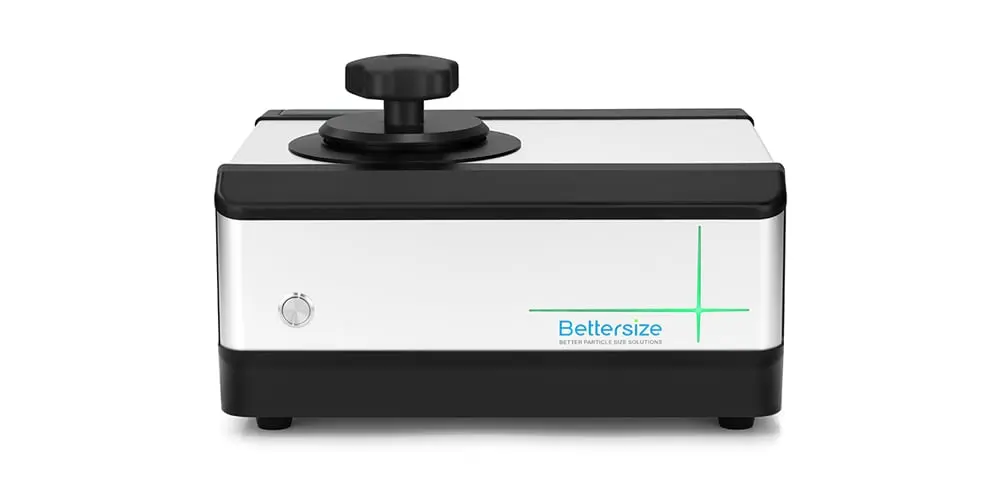

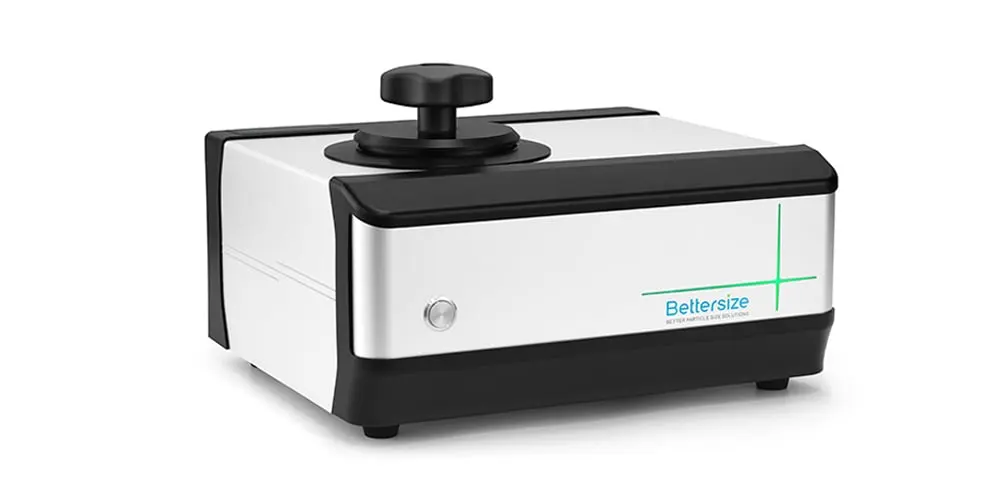

BetterPyc 380

お見積依頼 連絡販売
パンフレットをダウンロード

BetterPyc 380は、ガス置換法を用いて高精度の測定を簡単に実現し、高い信頼性を最大限に提供する自動ガスピクノメーターです。温度制御、圧力検知、直感的なソフトウェアにより、サンプルの体積、真密度、固形分、気孔率を最大4桁の精度で測定することができます。幅広い産業分野の研究・生産用に設計されたBetterPyc 380は、製品の可能性を最大限に引き出 します。

機能と利点

  • 多機能:体積、密度、固形分、気孔率の4つの測定が可能
  • 高精度
  • 快適な操作性
  • 統合ソフトウェアソリューション
  • 少量のサンプルで測定可能

ビデオ

How to Operate BetterPyc 380 to Measure Open Cell Content? Video play

Overview of BetterPyc 380 | Versatile Gas Pycnometer Video stop

What is True Density? Fundamentals of BetterPyc 380 Video stop

What is Gas Displacement Method? How to Calculate the True Density of Materials? Video stop

How to Operate BetterPyc 380 for Volume Calibration? Video stop

How to Operate BetterPyc 380 to Measure the Solid Content? Video stop

How to Operate BetterPyc 380 to Measure the Density? Video stop

概要

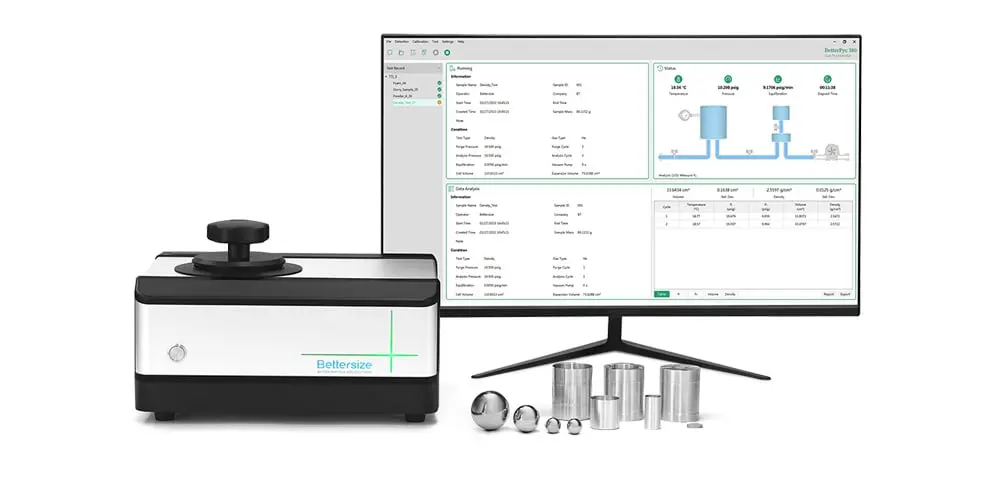

BetterPyc 380シリーズ 汎用ガスピクノメーター


BetterPyc 380シリーズは、ガス置換法を用いて高精度の測定を簡単に実現し、高い信頼性を最大限に提供する自動ガスピクノメーターです。温度制御、圧力検知、直感的なソフトウェアにより、サンプルの体積、真密度、固形分、気孔率を最大4桁の精度で測定することができます。幅広い産業分野の研究・生産用に設計されたBetterPyc 380は、製品の可能性を最大限に引き出します。



1、装置特長


多機能

サンプルの完全性を保ちながら、体積、密度、固形分、気孔率の4つの測定が可能です。



高精度

温度制御、高分解能トランスデューサー、校正済みチャンバー容量により、極めて高い精度と信頼性を確保します。


快適な操作性

自動測定、校正、漏れ検知などが可能で、オペレーターの経験の多寡を問わずご利用いただけます。



統合ソフトウェアソリューション

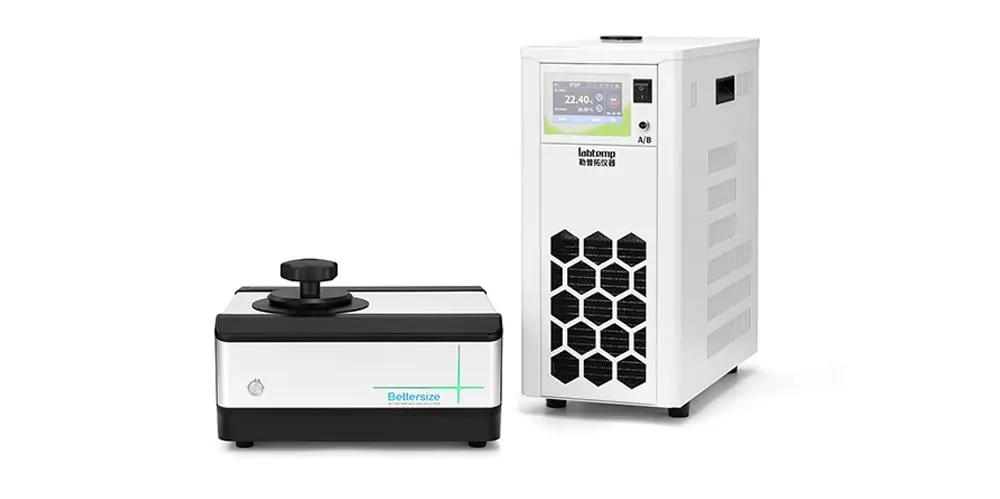

天秤への直接接続、外部水槽への遠隔制御が可能です。



少量のサンプルで測定可能

1~100cm3のサンプルを入れるだけで、サンプルの完全性が保たれます。



2、動作原理

ガス置換法に基づいて設計され自動ガスピクノメーターです。ヘリウムや窒素などの分析用ガスを、容積が既知の密閉されたサンプルチャンバーに導入し、精密な基準チャンバーに膨張させることで動作します。膨張前後の圧力を記録することで、体積を正確に測定することができます。



Betterpyc Gas System



ガスの予熱

ガス予熱は精密な温度制御システムによって実現され、狭い範囲内で一定の温度を維持することで、より正確な測定が可能となります。温度制御システムは、自動ガスピクノメーターの設計における重要な要素です。



ガス置換

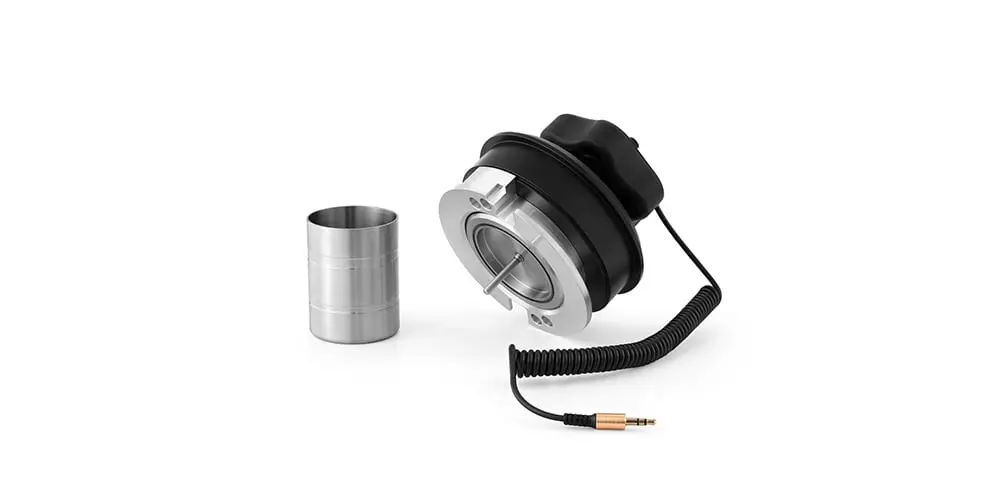

ガスがサンプルチャンバーに導入され、空いた空間を置換し、サンプルの細孔に浸透していきます。密閉性を高めるチャンバーリッドにより、試料室は完全に密閉され、測定中のガス漏れを防止します。



一次圧力平衡

 一回目の圧力平衡の後に圧力1が記録されます。温度制御システムが安定したガ ス温度を維持し、0.005 psig/min以下に平衡化することを可能にします。平衡化後、高分解能の変換器によりサンプルチャンバー内の圧力が測定されます。



ガス膨張

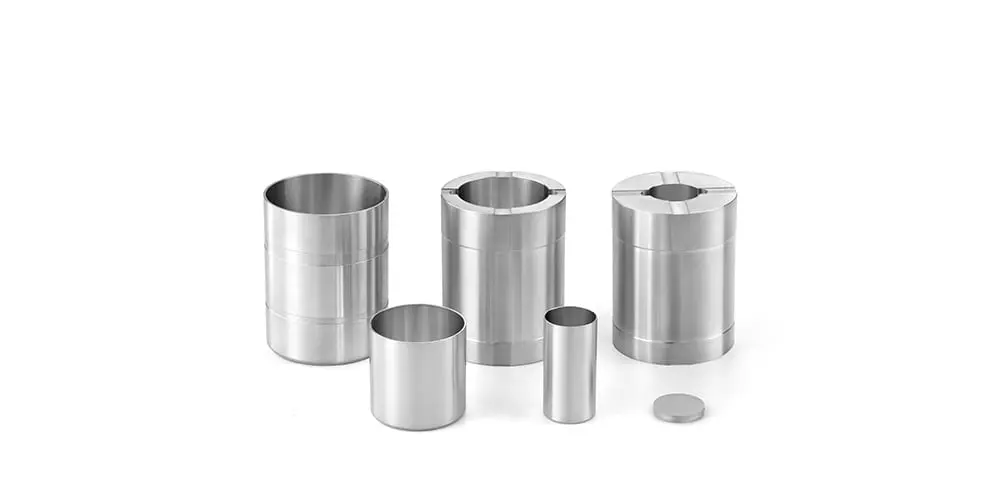

その後、ガスは基準チャンバーへと膨張させられます。2つの内蔵基準チャンバー はサンプルチャンバー内のフリースペースと一致しているため、正確な結果が得 られます。サンプルカップのサイズに基づいて適切なチャンバーが自動的に選択 され、正確な密度測定に理想的な条件を構成します。



二次圧力平衡

二回目の圧力平衡の後に圧力2が記録され、ガスが雰囲気中に排気されます。その後、結果が計算されます。測定誤差を減らすため、内蔵真空ポンプがガスを排出し、パージ効率を向上させます。



3、対応規格・産業

BetterPyc 380は多くのASTMやISO規格に準拠しており、幅広い産業でお使いいただける汎用性の高い測定器です。さまざまな材料の密度、スラリー中の固形分、プラスチック発泡体の気孔率を測定することができ、産業におけるプロセスの最適化や品質保証を可能にします。



APPLICATION  DISCUSSION  STANDARD APPLICATION  DISCUSSION  STANDARD
Powder Metallurgy The skeletal density of metal determines its properties and processing results, and the performance of metal structures can be predicted from powder skeletal density. ASTM D923-22 Cellular Plastic Plastic foam properties vary based on the open/closed cell ratio. Insulation foams reduce thermal conductivity
with trapped gas in closed pores. Flotation devices float due to closed air-filled pores.

ASTM D6226-21

ISO 4590-2016

Pigments  Dried film density helps determine the VOC content of clear and pigmented coatings, which is regulated by the government.

ASTM 6093-97

ISO 8130-2:2021

Pharmaceutical Product density determines and controls active or excipient composition. Product forms, purity, etc. can be determined by comparing measured density with theoretical and historical values.

USP 699

EP10 04/2019:20923

Cement True density is essential for ensuring the quality and performance of cement powder, influencing its flowability, strength, and environmental impact. T/CCAS 012  Soil Soil specific gravity (SG), which is related to soil density, must be corrected due to precipitate formation after drying. A precipitate with lower SG leads to lower results, while one with higher SG leads to higher results. ASTM D5550 -14
Food  True density is crucial for ensuring the consistency and quality of dry food, affecting its processing, shelf life, and
nutritional value.
- Calcined Coke The density of calcined petroleum coke is a crucial quality specification for coke calcination, as it affects the properties of the resulting artifacts.  ASTM D2638-21
Powder Coating Total solids content helps determine coating coverage potential. Dry pigment blends are monitored by
comparing measured and theoretical densities based on composition.
ASTM D5965-20 Refractory True density is useful for: classification, identifying chemical differences, revealing mineral phases or alterations, determining total porosity and calculating results for other tests. ASTM C604-02



厳選されたリソース

  • Application Note
    Ceramics Application Notes collection

    2024-04-10

    Ceramics Application Notes—Enhancing Manufacturing Efficiency

    bigClick
  • Application Note
    Influence-of-Particle-Size-and-True-Density-of-Hollow-Glass-Microspheres-on-the-Compression-Strength

    2024-03-15

    Influence of Particle Size and True Density of Hollow Glass Microspheres on the Compression Strength

    bigClick
  • Industry Solution
    Additive Manufacturing Solution Particle and Powder Characterization

    2024-02-28

    Additive Manufacturing Solution - Particle and Powder Characterization

    bigClick

その他の資料

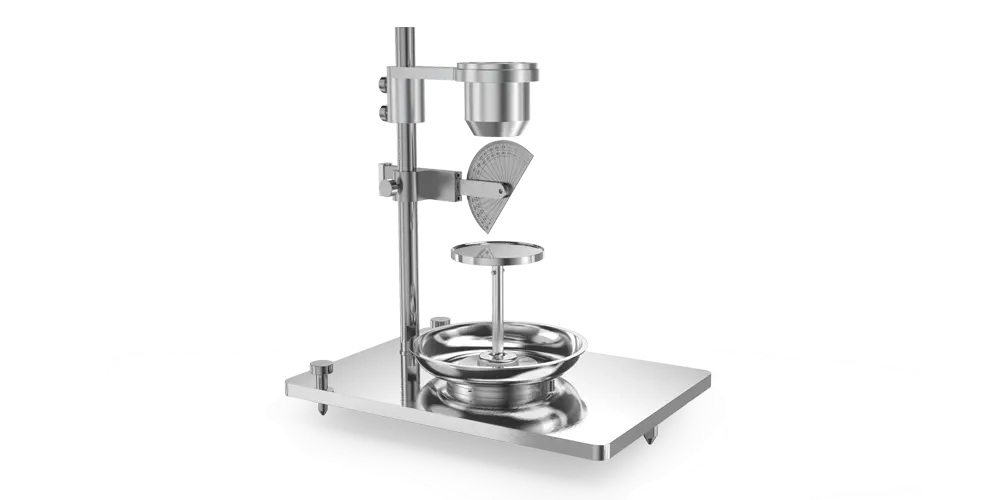

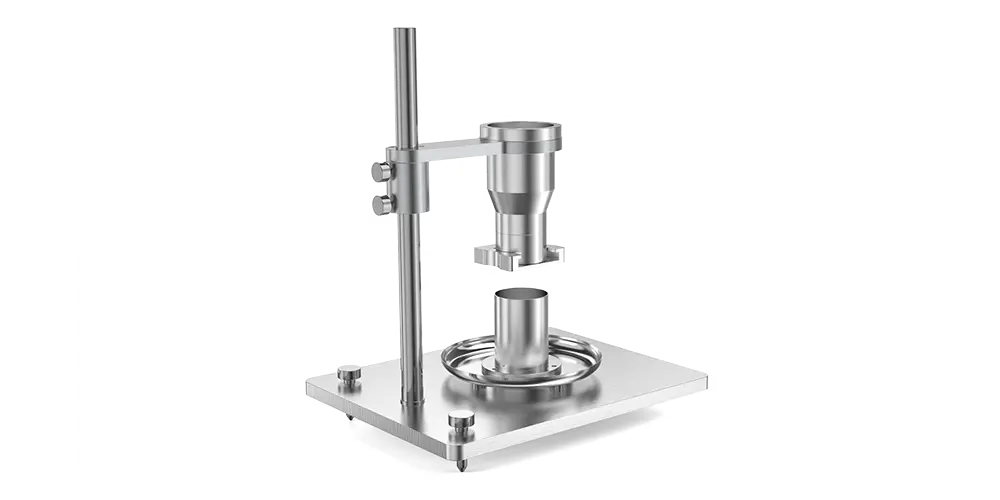

関連粉体特性分析装置
