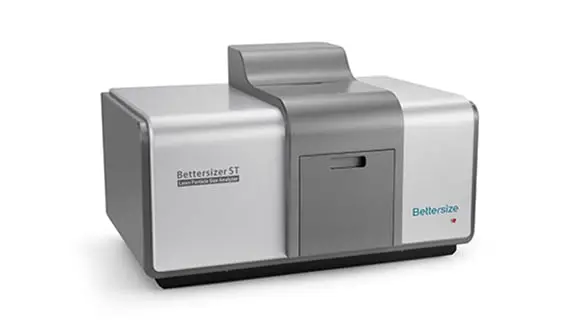

Bettersizer ST
Der Bettersizer ST ist ein vollautomatischer und integrierter Partikelgrößenanalysator mit einem intelligenten System für die Nass-Dispergierung. Optimiert für den industriellen QC-Prozess, liefert der Bettersizer ST stabile und zuverlässige Testergebnisse bei minimalem Benutzereingriff. Die kompakte Stellfläche spart wertvollen Arbeitsraum in Fabriken und Labors.
Funktionen und Vorteile
- ● Dispersionstyp: Nass
- ● Größenbereich: 0,1 - 1.000µm
- ● Robustheit
- ● Benutzerfreundlichkeit
- ● Cost-Efficiency
- ● Kompakte Bauweise
- ● Geringe Wartung
- ● Duales Linsensystem
- ● Automatische Ausrichtungsfunktion
- ● Automatische Messung mit SOP
Video
Bettersizer ST Self-Installation is Quick and Easy
Learn How Bettersizer ST can Help with Your Quality Control in 2 Minutes
Bettersizer ST | Demo (CaCO3 Sample)
How to Install and Operate Bettersizer ST
Bettersizer ST Overview | Laser Diffraction Particle Size Analyzer for QC
Überblick
Ihr QC-Werkzeug aus einer Hand
Der Bettersizer ST ist ein automatischer Laserbeugungs-Partikelgrößenanalysator, der für die industrielle Qualitätskontrolle entwickelt wurde. Sein patentiertes DLOS (Dual Lens Optical System) garantiert, dass das Gerät konsistente und zuverlässige Ergebnisse der Partikelgrößenverteilung liefert. Die SOP (Standard Operating Procedure) und die automatisierten Analyseverfahren sollen Ihnen helfen, wertvolle Zeit für die Qualitätskontrolle zu sparen.
1. Ausgezeichnete Genauigkeit
♦ Genauigkeitsüberprüfung der Standards
- Duke-Standardproben wurden separat mit dem Bettersizer ST Laser-Partikelmessgerät gemessen, wobei der Verteilungspeak in der richtigen Position und eine enge Verteilung mit hoher Genauigkeit angezeigt wurde.
- Die rote Linie ist der nominale Größenbereich der Standards ± 1,0 %, und die schwarzen Punkte sind die gemessenen Größen. Wie die Abbildung zeigt, liegt die Messgenauigkeit des Laser-Partikelmessgeräts Bettersizer ST für Standards innerhalb von 1 %.
2. Hervorragende Reproduzierbarkeit
Die außergewöhnliche Wiederholbarkeit des Bettersizer ST Laser-Partikelmessgeräts gewährleistet die Zuverlässigkeit der Ergebnisse. Schnelle Messungen mit konsistenten und zuverlässigen Ergebnissen können Ihre Arbeit in der Qualitätskontrolle erleichtern.
♦ Hervorragende Wiederholbarkeit durch
Stabilität der Signalübertragungssysteme - Effizientes Dispersionssystem - Automatische Ausrichtung hält das Gerät immer in optimalem Zustand - Signalerfassungsrate bis zu 3500 Mal/Sekunde
♦ Wiederholbarkeitstests
Die hervorragende Wiederholbarkeit des Bettersizer ST wird durch die folgenden zwei aufeinanderfolgenden Tests nachgewiesen.
 |  |
 |  |
3. Erleichterung Ihrer Arbeit in allen Aspekten
Die Bettersize-Software bietet verschiedene Funktionen, die Ihren Arbeitsaufwand erheblich reduzieren.
1) Intuitive Software
2) Intelligente Datenauswertung zur Qualitätskontrolle
3) Leistungsvalidierung
Mit der unabhängigen Leistungsvalidierungsfunktion kann die Software automatisch Berichte erstellen, die mit der ISO 13320 und den Pharmakopöen übereinstimmen.
4) Systemüberprüfung
Diagnostischer Scan: Checkliste für die Systeminspektion.
4. Kosteneffizienz und Robustheit
1) Hervorragende Robustheit
- Integrierter Guss der Bodenplatte zum Schutz des Gerätes
- Präzise Messungen können auch nach einem Robustheitstest erzielt werden
- Langlebige Faser-Halbleiter-Laserquelle
- Langlebiger Zirkulationsbehälter aus gegossenem Edelstahl
- Leistungsregulierbarer Ultraschall-Dispergierer mit Trockenlaufschutz
2) Kompakte Bauweise
- Sparen Sie wertvollen Arbeitsraum für Fabriken und Labore mit einem internen Nass-Dispergiersystem
- Das DLOS gewährleistet Ergebnisgenauigkeit und -zuverlässigkeit und vermeidet gleichzeitig eine klappbare Optik, die anfällig für Fehlausrichtungen ist
3) Einfache Wartung

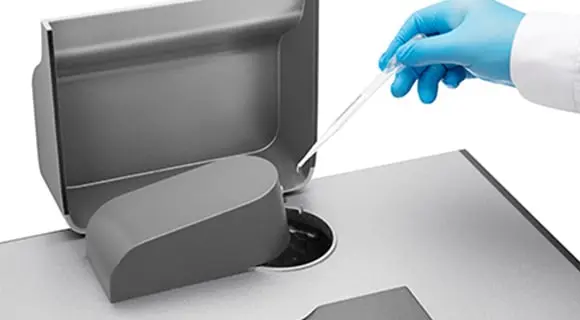

- Die einfache Demontage der Probenzellen ermöglicht eine schnelle Reinigung, die ohne professionelles Werkzeug und übermäßig saubere Formulierungen leicht zugänglich ist
- Die automatische Reinigungsfunktion für den Zirkulationstank erleichtert die Wartungsarbeiten erheblich
- Der Selbstreinigungsprozess kann in der Software leicht angepasst werden
4) Niedrige Betriebskosten
- Einstiegspreis für einen Laser-Partikelgrößenanalysator
- Ein Messbereich, der die meisten Anwendungen abdeckt, kann mit DLOS ohne zusätzliche Kosten für eine zweite Laserquelle erreicht werden
